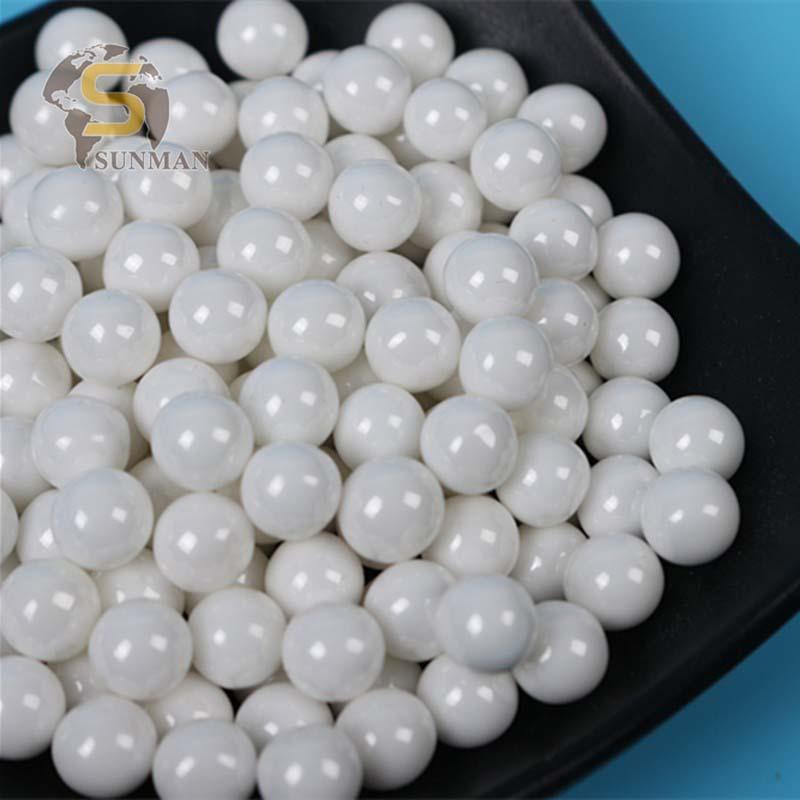

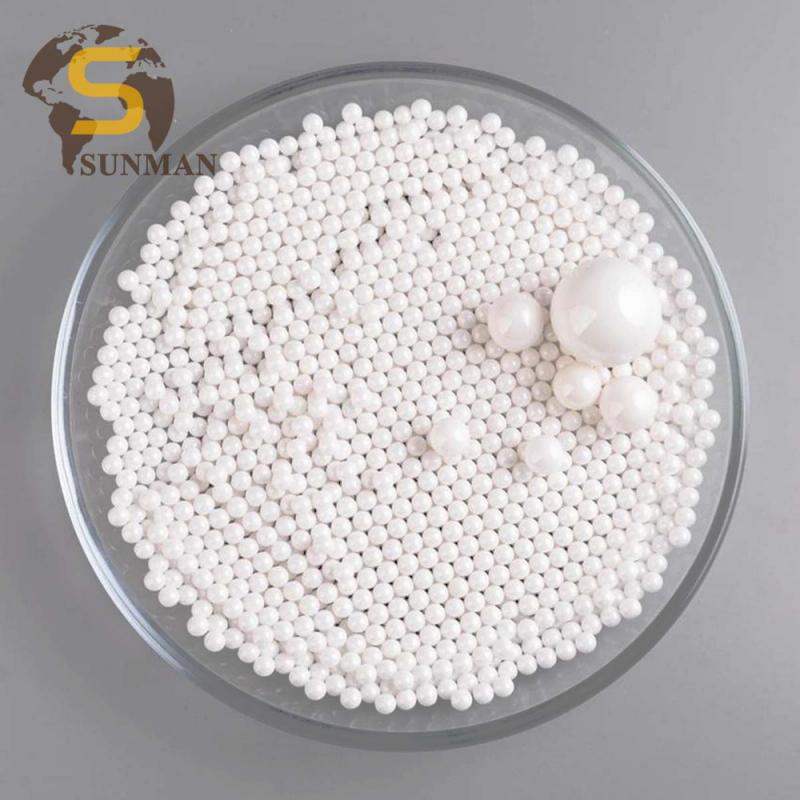

95% ZrO2 Zirconia Ceramic Balls

zirconia ceramic balls are with high strength, high fracture toughness, a large proportion of the wear-resistant, ppm wear grade, high hardness, corrosion resistance, ultra-smooth surface features and etc.

  • Product Origin:

    China
  • Material:

    Zirconia Ceramic
  • Size:

    0.1-50mm
  • Moh's hardness:

    9
  • Density:

    >6.0kg/dm3
  • Product Detail

Features:
1.No broken and peeling balls: the best choice for high speed disperser mills.
2.PPM wear rate: to grind the non cross contamination material is possible.
3.Always maintain the smooth surface, the good roundness during beads are at work.

Chemical Composition:

Composition

ZrO2

Y2O3

Wt%

95

5


Typical Properties:

Specific Gravity

>6.0kg/dm3

Bulk Density

>3.6kg/L

Hardness Mohs

9

Hardness Vickers

>1200kg/mm2

Crushing Strength

12000N(5mm)

Color

Ivory

Size:

Φ0.1, Φ0.2, Φ0.3, Φ0.4-0.6, Φ0.6-0.8, Φ0.8-1.0, Φ1.0-1.2, Φ1.2-1.4, Φ1.4-1.7,

Φ1.5-2.0, Φ2.0-2.5, Φ3, Φ4, Φ5, Φ8, Φ10…or any customize sizes.


Applications:

1.grinding and dispersion of coatings and paints.
2.organic/inorganic pigments, e.g. titanium dioxide, ultra marine, iron oxide, etc.
3.pigments to dye textiles, plastics and food.
4.electric ceramics, e.g. barium titanate, piezoelectric ceramics, sensors, condensers.
5.medical technology, e.g. dentures and hip prosthesis.
6.magnetic ceramic, ferrite.
7.technical ceramic components, e.g. exhaust cultivator in engine technology.
8.dispersion of fungicides, herbicides, insecticides.
9.grinding of pigments and solids for lipsticks, skin and sun protection creams.
10.nano grinding for the production of active substances and supplies substances.


Related Products
Zirconia Silicate Beads Suppliers
High density Zirconium Silicate Bead
Zirconium Silicate Bead will be suitable for the grinding of materials with medium and low viscosity and it can be used in most of the grinding equipment. The small size beads are usually used as high end ball blast for polishing and removal of flaws.
ceramic zirconia beads
Ceria Stabilized Zirconia Bead
abrasion resistance zirconia ceramic grinding beads are sintered in a leading manufacture process. The compact and homogenous Tetragonal Zirconia Polycrystal (Ce-TZP) result in the highest hardness, density and excellent wear resistance. Zirconia ceramic grinding beads is optimal for milling high viscosity and abrasion particles in high energy intensity mills.
Zirconia Bead
0.05-10mm Yttria Stabilized Zirconia Bead
Zirconia Bead is pressed with high grade yttria stabilized zirconia powder and harden in sintering kiln.The excellent bending strength and crushing strength can be filled in horizontal and vertical ball mills, vibrating mill and tower mills.
zirconia toughened alumina ball
Zirconia Toughened Alumina Beads
It is specially designed for grinding and dispersing the materials like calcium carbonate, white clay, titanium dioxide, paint and so on.It is applied to the high speed grinding equipment like slurry mixer, stripper,ball mill,etc.
ceramic grinding media ball
Zirconium silicate ceramic grinding ball
With a medium density and hardness,Zirconium silicate ceramic grinding balls are suitable for the grinding of the material with a low or medium viscosity and it can be used in most of the grinders.
